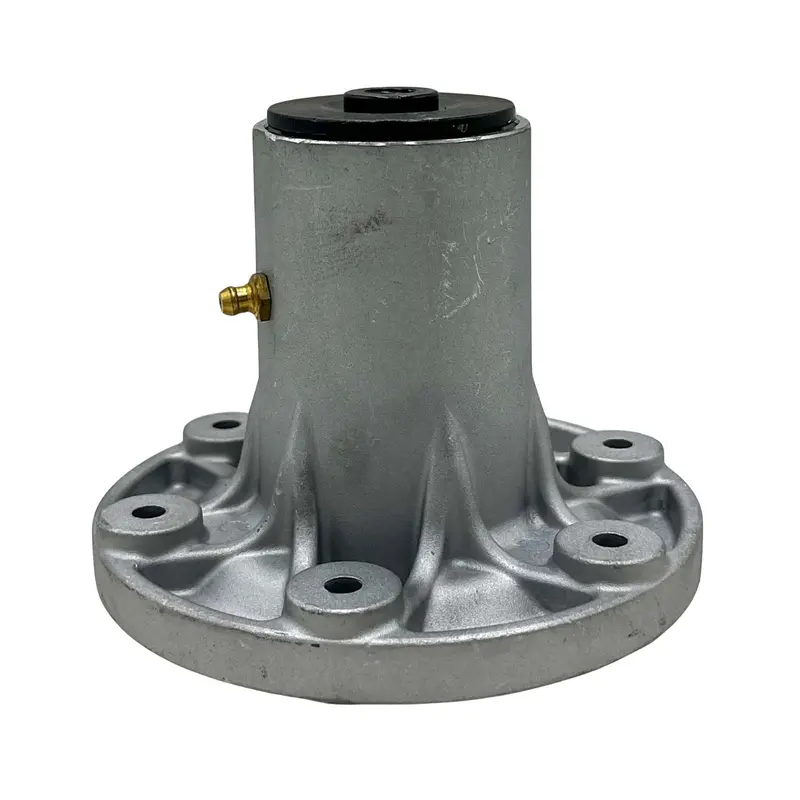

Replacement spindle assembly for Ferris and Snapper Pro part numbers 5416763 which has been superseded to 5416763FS.
This spindle fits specific 48-inch cut Ferris 400S & 500S & Snapper Pro S 40 zero-turn models.
The 6 mounting holes are not threaded per the OEM design. For proper installation, torque spindle mounting bolts to 25-30 ft-lbs (34-41 Nm). The part number for the mounting bolts is 704146 (SCREW, HEX, 5/16-18X1). Using the correct mounting bolt will cut the treads as you install them to secure the spindle. The diagram for the mowers using this spindle do not show washers or a nut.
Verified Replacement For These Mower Models:
Ferris:
- 400S (5901704) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
- 400S (5901705) – Ferris 400S Series 48″ Zero-Turn Mower, 22hp Kawasaki
- 400S (5901706) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
- 400S (5901707) – Ferris 400S Series 48″ Zero-Turn Mower, 22hp Kawasaki, CARB
- 400S (5901729) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
- 400S (5901740) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
- 400S (5901775) – Ferris 400S Series 48″ Zero-Turn Mower, 25hp Briggs & Stratton
- 400S (5901813) – Ferris 400S Series 48″ Zero-Turn Mower, 25hp Briggs & Stratton, CARB
- 400S (5901952) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
- 400S (5901990) – Ferris 400S Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
Snapper Pro:
- S 40 (5901738) – Snapper Pro S40 Series 48″ Zero-Turn Mower, 22hp Kawasaki
- S 40 (5901739) – Snapper Pro S40 Series 48″ Zero-Turn Mower, 23hp Briggs & Stratton
For use with blades that have a 13/16″ (0.805″) center hole diameter.
If you have a question about this spindle, please contact us and mention SKU Ferris1.
