Description

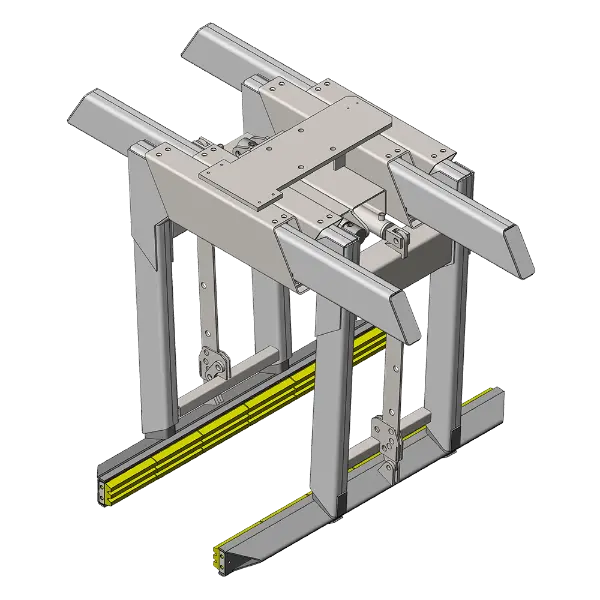

Hydraulic grapple to move brick pallets. The compression rails on our brick and block grapples is made of long life polyurethane. Pallet fork are built from forged steel that allows easy insertion into the pallet. We use certified S355J2H steel that allows the fork to maintain thier lifting capacity down to -4 Fahrenheit. The generous dimensions of the lifting ring gives the fork the ability to lift the load in any working condition.
| Measurements | GRA-PL 2 | GRA-PL 2A | GRA-PL 2F | GRA-PL 3 |
| Weight Lbs | 782 | 826 | 731 | 1104 |
| Capacity Lbs | 4400 | 4400 | 4400 | 6610 |
| Max Pressure PSI | 2900 | 2900 | 2900 | 2900 |
| A inches | 17.7 | 17.7 | 17.7 | 17.7 |
| B inches | 55.1 | 55.1 | 55.1 | 55.1 |
| C inches | 46.4 | 51.1 | 51.1 | 53.1 |
| D inches | 38.1 | 43.3 | 43.3 | 43.3 |
| E inches | 48.0 | 48.0 | 48.0 | 48.0 |
| F inches | 53.1 | 66.9 | – | 53.1 |
